Current location:Home > (0.5-3mm)x 1600mm Aluminum Coils Decoiling Leveling and Cut-to-Length Line
(0.5-3mm)x 1600mm Aluminum Coils Decoiling Leveling and Cut-to-Length Line Description Function 1、What is Cut To Length Machine The Cut To Length Machine also called cut to length line which are used for uncoilingleveling and cutting the metal coil into the required length of flat sheet material and stacking.It
Send InquiryChat Now
电 话: +86-15961895852
Product Details

Description &Function
1、What is Cut To Length Machine The Cut To Length Machine also called cut to length line which are used for uncoiling,leveling and cutting the metal coil into the required length of flat sheet material and stacking.It suitable for processing cold rolled and hot rolled steel, coil,galvanized steel coil,silicon steel coil, stainless steel coil,aluminum coils etc into different width according to the user’s production demands and cut as well
 2、Function This equipment through the procedure of uncoiling, leveling, precision gauge cutting, processing the strip steel coil into required steel pate. It mainly composed of uncoiler, pincher and leveler, gauge, cutting machine , stacker, etc, with assists of feeder, side guiding device, transition, and conveyor, etc.
3、Category According to the metal materials there are stainless steel cut to length machine,silicone steel cut to length machine,cold or hot rolled plate cut to length machine and so on. According to its electronic control mode there are pneumatic cut to length line,NC cut to length line and etc..

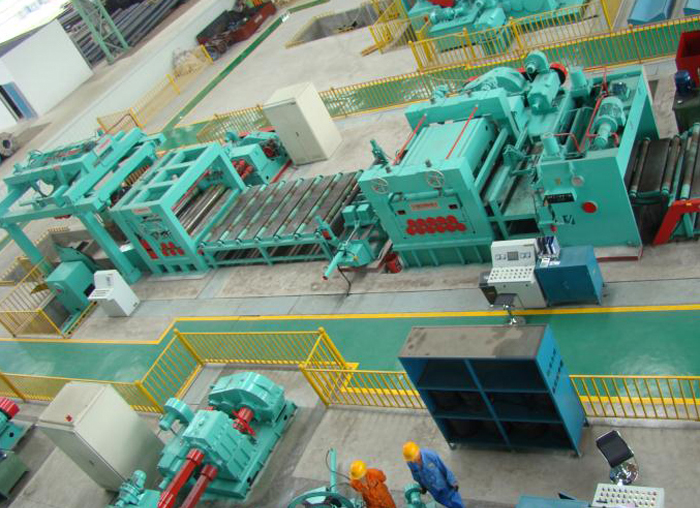

The whole lineflowchart
Coil loading car----Decoiler----coil head press, guide and shovel equipment----Double pinch rollers---Centre aligner----high-precision levelers( 23 rolls)---encoder ----hydraulic tracking cutting machine--pinch rolls for sheets dropping-- plates-delivering roll table----plates sending out device----plates supporting table---plates piling up device--manual packing

Machine parameters
1.Main Basic Parameters:

item   specifications
Raw materials Materials feature Aluminum alloy 3003 and 5052
thickness 0.5mm—3.0mm
Aluminum feature Tensile grade σb≤450MP  Yield grade  σs≤260MP
width 800mm—1600mm
O.D Φ800mm—φ2100mm
I.D φ508mm—φ610mm
Coil weight Max 15T
Finished product Flatness without any increased processment faults
Cutting length 500mm—4000mm
Leveling precision less than 25% raw materials non-flatness(1.5-2mm/㎡)
Cutting tolerance:
±0.5mm/1000mm( length tolerance)
±0.50mm/1000mm( diagonal tolerance)
Match the standard GB/T709-88
Strip threading speed 0—10m/min
Line speed 0-20m/min
Cutting speed 0-15 pcs/ according to the length 2000mm
Total line power consumption About 130kw
Center line of the line ( to the ground) 800mm
Space of the whole line 18mx9m
Line direction Left input to right output or right to left direction

2.The equipment working condition:
Power supply conditions: 3 ph, AC, 415V+10%, 50Hz+2%
Air source: compressed air:
pressure: 0.5-0.6 MPa
displacement: 1.5 m3/min
Water source: no requirement
Environmental Conditions in Factory Buildings            :
Temperature - 5 ~40
Relative humidity < 90% (without condensation)

3.Machine configuration and motor power list:

item N/m Qty power(KW) description
      DC AC
1 decoiler 1 18.5KW   main drive and back-tensioning
2 Pinch roll 1   5.5KW Main drive
4 Leveling machine 1 45KW   motor
   Film covering machine     1.5KW
5 Pneumatic cutting machine 1   7.5KW Main drive
6 Servo-motor 1   22kw servo-motor Servo motor control
7 Hydraulic station 1   7.5KW Oil pump control
Total About 130KW

Other Products

Product Advantage
1.Technological process of the production line is concise, compact layout, advanced technology, put an end to produce defects, comprehensive energy consumption is low, simple operation and maintenance, low operating cost.
2.Production line adopts the standard electrical, instrumentation components and equipment components meet the needs of the buyers,Control system has the maintainability and expansibility; And ensure the advanced technology, reliable control, during normal operation can automatic complete all real-time detection and adjusting function, have interlocking function to prevent wrong operation, Do all the operation, monitoring on main operating platform .Display and handle the alarm.

Company Profile Wuxi HRF Science & Technolog Co.,Ltd located in Wuxi city,Jiangsu province which is close to Shanghai international airport ,we enojoy convenient transportation and advantageous location with which supply good business opportunities for the investors home and abroad.And our company was established in 2009, has the specialized technical team, provides the high quality product and the high quality service for you. Our company are specialized in designing,manufacturing,sales and services in the field of cold roll forming machines, we can supply the stud-track forming machines,c/z purlin forming machines,roof &wall forming machines,expressway guardrail forming machines, metal deck forming machines ,steel tile forming machines ,PU sandwich panel production line as well as slitting lines and cut-to-length machines lines and so on.
 "Copra" software made in Germany is a kind of professional software for designing the cold roll forming machines.In the past years,we devoted ourselves to studying,training and putting into production.Through continous efforts made by our staffs,we already improved a lot on the machines quality and won good repution in the worldwide.
We are ready to establish the business relations with the overseas customers and we also believe" the oppotunity here,here you are"
  Our commitment is quality and service , our goal is customer satisfaction . We will, as always, be pragmatic and promote mutually beneficial cooperation and common development Of you
Certified product
Customer Photos FAQ 1. Why should you choose from us?  Professionalism. We are a professional manufacturer in Slitting & Cut to Length (CTL) line machine for more than 20 years. We can provide cost-effective & high quality slitting and cut to length machines.         So far we have exported to more than 80 countries, including Argentina, Bangladesh, Belarus, Bolivia, Brazil, Chile, Egypt, Indonesia, Iran, India, Malaysia, Pakistan, Philippines, South African, Turkey, Russian, UAE, Saudi Arabia, Vietnam, etc. Our dedicated sales &technology &service team of specialists is always customer-oriented. 2. How about the safety ?   We exclusively collaborate with specialists in cargo safety and our suppliers are chosen for their promptness and high standards. We have our own professional staff to tied the machines firmly to the inside of container by steel rebar. We always deliver the machines on time and keep the customer well informed about the shipping information and drawing.
 3. What is the quality of your machine?  The first class Quality. We manage to offer our partners the best customer care, products and services by using the latest technologies in the branch. The components we provide are of best quality, to make sure our machines can be running very well for decades.
4. What service we can get from your company?  -VIP Service. Due to our standards, we manage to build long-lasting relationships with all our customers.  We are 24/7 online available for you to answer your questions and solve your problems.    5. Quality Inspection  The machines of our company have many certificates like ISO 9001, CE, SGS, etc. Before the shipping, we have a series of quality check system, includes 3 times of inspection for every production procedure. First inspection needs the workers to check and sign on the test report. Second inspection involves department leaders to check and sign on the test report. The Third inspection needs professional inspector to check and ensure the machines are qualified. We also give 18 month warranty time to the  customer Related Products
