Broom Handle Tube making machine quotation
1.Spiral steel pipe production process: spiral steel pipe made of steel coiled coil as raw material, often heated and extruded, and welded by automatic double wire double-sided submerged arc welding process. 2.The characteristics of spiral
Send InquiryChat Now
1.Spiral steel pipe production process: spiral steel pipe made of steel coiled coil as raw material, often heated and extruded, and welded by automatic double wire double-sided submerged arc welding process.
电 话: +86-15961895852
2.The characteristics of spiral steel pipe: straight seam welded pipe has simple production process, high production efficiency, low cost and rapid development. The strength of the spiral welded pipe is generally higher than that of the straight welded pipe. It is possible to produce a welded pipe with a larger diameter by using a narrow blank, and it is also possible to produce a welded pipe of different diameter with a blank of the same width.Most of the smaller diameter welded pipes are straight seam welded, while the large diameter welded pipes are mostly spiral welded.
3.Spiral tube material: Q235A, Q23b, 0Cr13, 1Cr17, 00Cr19Ni11, 1Cr18Ni9, 0Cr18Ni11Nb. Q345 L245 L290 X42 X46 X70 X80
The whole lineflowchart
Raw material (steel coil) → uncoiling →material accumulating → non-power leveling →mill-forming → high-frequency welding → removing burrs outside of weld seam →zinc→ cooling → sizing → roughly straightening → fixed length cutting → run-out table

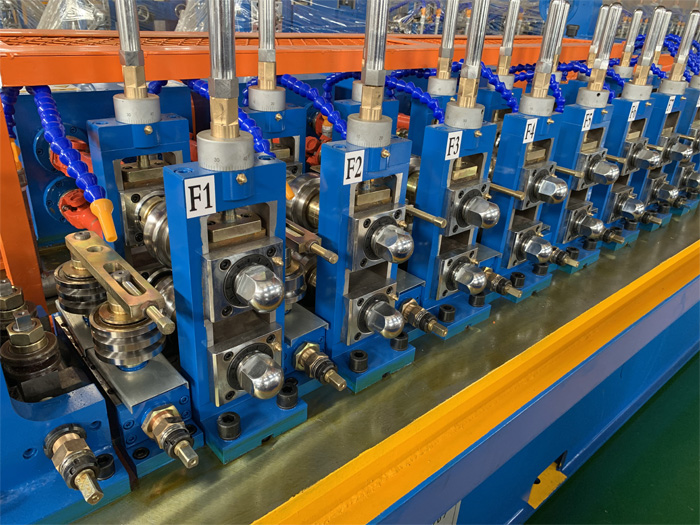

This equipment is specially used for producing broom handle tubes (Φ8-Φ25mm, δ0.25-1.0mm ) high-frequency straight seam welded tube.The composition of equipment is from uncoiler to fixed length cutting saw. Rolling speed can be adjusted correspondingly within suitable range of tube diameter and wall thickness.
2. Applicable material:
(1) Hot or cold-rolled steel strip (As per GB700-88)
(2) Material: Low-carbon steel, low alloy steel, galvanized steel strip
(3) The thickness of steel strip: 0.25-1.0mm (As per GB708-88)
(4) The width of steel strip: 25-80mm
(5) I.D. of steel coil: Φ450-Φ550mm
(6) O.D. of steel coil: Φ800-Φ1200mm
(7) Maximum weight coil: 800kgs
3. Dimension range of processing steel tube:
(1) O.D.: Φ21mm
(2) Wall thickness: 0.25-1.0mm
(3) Length: 4-8M
4. Milling speed: 30-100M/min(choose different speed as per different pipe diameter and thickness)
Double-side manual uncoiler
Cooling tank: Sink and shower
installed in machine bed
Computer Cutting Saw
Single Side Run-out Table:
The function is to convey the finished pipe after cutting
1.Technological process of the production line is concise, compact layout, advanced technology, put an end to produce defects, comprehensive energy consumption is low, simple operation and maintenance, low operating cost.
2.Production line adopts the standard electrical, instrumentation components and equipment components meet the needs of the buyers,Control system has the maintainability and expansibility; And ensure the advanced technology, reliable control, during normal operation can automatic complete all real-time detection and adjusting function, have interlocking function to prevent wrong operation, Do all the operation, monitoring on main operating platform .Display and handle the alarm.
