Product Details
Description &Function
1.Spiral steel pipe production process: spiral steel pipe made of steel coiled coil as raw material, often heated and extruded, and welded by automatic double wire double-sided submerged arc welding process.
2.The characteristics of spiral steel pipe: straight seam welded pipe has simple production process, high production efficiency, low cost and rapid development. The strength of the spiral welded pipe is generally higher than that of the straight welded pipe. It is possible to produce a welded pipe with a larger diameter by using a narrow blank, and it is also possible to produce a welded pipe of different diameter with a blank of the same width.Most of the smaller diameter welded pipes are straight seam welded, while the large diameter welded pipes are mostly spiral welded.
3.Spiral tube material: Q235A, Q23b, 0Cr13, 1Cr17, 00Cr19Ni11, 1Cr18Ni9, 0Cr18Ni11Nb. Q345 L245 L290 X42 X46 X70 X80

The whole lineflowchart
 Raw material (steel coil) → uncoiling →material accumulating → non-power leveling →mill-forming → high-frequency welding → removing burrs outside of weld seam →zinc→ cooling → sizing → roughly straightening → fixed length cutting → run-out table

Main Technical Specification
Power Supply 380V/22V;50HZ
Power of Machine
HF welding machine 150  KW
main motor 132  KW
Auxiliary machine 30  KW
total Appro: 312 KW
Area of Machine 40M(L)×4.5M(W)
Volume of HF Room 6M(L)×3M×2.8M

Finished Pipes
NO. Item Numerical Value
1 Round pipe diameter Φ16mm~Φ50mm
2 Round pipe thickness δ0.5mm~2.0mm
3 Square pipe size 15×15-30×30mm
4 Square pipe thickness δ0.5-1.8mm
5 Rectangular pipe size 20×10-25×40mm
6 Rectangular pipe thickness δ0.5-2.0mm
7 Rolling speed 20m/min~100m/min
(different diameter and thickness choose different speed)
8 Length of pipe 4m~6m
Applicable Raw Material
NO. Item Numerical Value Remark
1 Thickness of steel strip δ0.5~2.0mm Raw Material:
Carbon steel
Alloy steel
Galvanized steel
2 Width of steel strip H40~160mm
3 Outer diameter of steel coil Φ800mm~Φ1600mm
4 Inner diameter of steel coil Φ450mm~Φ550mm
5 Maximum weight of steel coil ≤2.0Ton
Product Picture
Double-side manual uncoiler Cage Accumulator  Cage Accumulator

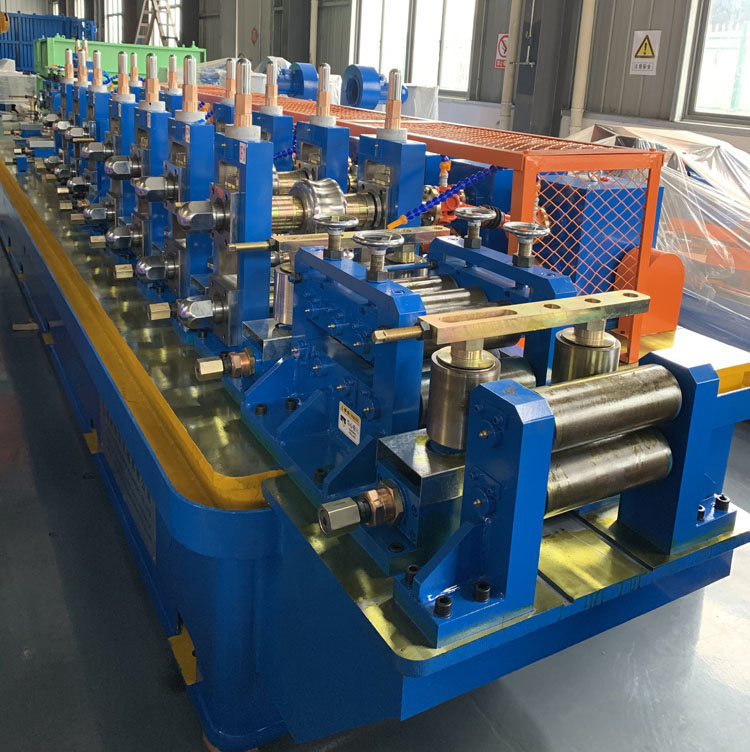

 Forming machine    Cooling tank: Sink and shower
installed in machine bed
Sizing Machine
Straightening Device Computer Cutting Saw Single Side Run-out Table:
The function is to convey the finished pipe after cutting
Other Products

Product Advantage
1.Technological process of the production line is concise, compact layout, advanced technology, put an end to produce defects, comprehensive energy consumption is low, simple operation and maintenance, low operating cost.
2.Production line adopts the standard electrical, instrumentation components and equipment components meet the needs of the buyers,Control system has the maintainability and expansibility; And ensure the advanced technology, reliable control, during normal operation can automatic complete all real-time detection and adjusting function, have interlocking function to prevent wrong operation, Do all the operation, monitoring on main operating platform .Display and handle the alarm.
