Product Details

Description &Function

What’s the sitting machine? Main function? Classification?

1.What's the slitting machine? Slitting machine is also known as slitting line, is a metal slitting equipment, According to customer requirements, the deferent material coil will be lengthwise cut into a number of required specifications strip.

2.What’s the main function? Slitting machine is suitable for longitudinal shearing of metal strip and rewinding narrow strip after cutting. The smaller metal strips are recoiled at the end of the slitting machine by which  these smaller strips are used necessarily for the next process usage in the professional field of making transformers,motors making industry,tube/pipe welding mill industry,Cold roll forming  industry, ceiling drywall industry  and other high-precison equipment making and metal strips making industries.

3.What’s the classification? According to the material slitting thickness there are thin plate or board slitting machine,media-thickness plate or board slitting machine and thick plate or board slitting machine. According to the metal materials there are copper strips slitting machine,stainless steel slitting machine,cold or hot rolled plate slitting machine,silicone steel slitting machine.

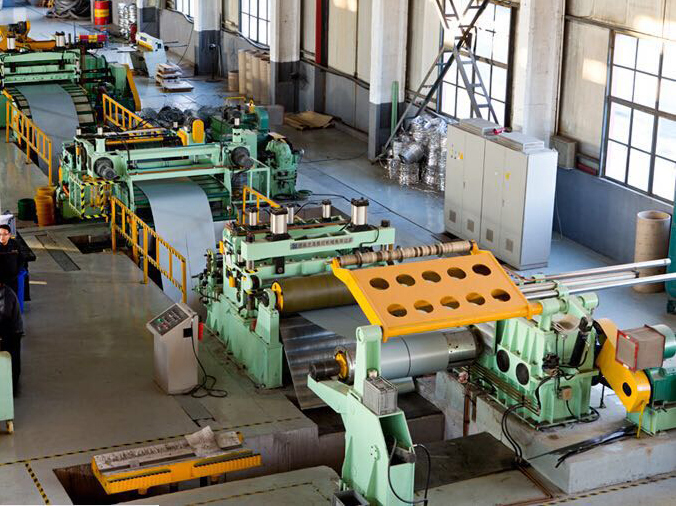

The whole lineflowchart

  Coil loading car----Decoiler----loop pit 1-center aligner-----slitting machine--waste scrap winder- loop pit 2--pre-separator--tensioner---pressing separator--recoiler--manual packing-Unloading coil car


Machine parameters

Product Name

  0.5--5mmx1800mm Slitting Machine



Whole line demension


Total power consumption


Line speed

  0-120m/min adjustable


  415v 50Hz,3Ph

The whole line flowchart

  Left direction to right or right to left direction


  100 days


  2 years

Terms of  Payment

  T/T and L/C

Installation service

The engineers overseas available

Supply Capacity

 3 sets/ one year

Basic specification of the steel coil

  Steel coil material

  carbon steel like GI,CR/HR ,PPGI and SS .Yield strength G350Mpa

  Coil thickness


  Coil width


  Coil width


  Coil inner diameter


  Coil weight

  max 25T

Company Profile Wuxi HRF Science & Technolog Co.,Ltd located in Wuxi city,Jiangsu province which is close to Shanghai international airport ,we enojoy convenient transportation and advantageous location with which supply good business opportunities for the investors home and abroad.And our company was established in 2009, has the specialized technical team, provides the high quality product and the high quality service for you. Our company are specialized in designing,manufacturing,sales and services in the field of cold roll forming machines, we can supply the stud-track forming machines,c/z purlin forming machines,roof &wall forming machines,expressway guardrail forming machines, metal deck forming machines ,steel tile forming machines ,PU sandwich panel production line as well as slitting lines and cut-to-length machines lines and so on.
 "Copra" software made in Germany is a kind of professional software for designing the cold roll forming machines.In the past years,we devoted ourselves to studying,training and putting into production.Through continous efforts made by our staffs,we already improved a lot on the machines quality and won good repution in the worldwide.
We are ready to establish the business relations with the overseas customers and we also believe" the oppotunity here,here you are"
  Our commitment is quality and service , our goal is customer satisfaction . We will, as always, be pragmatic and promote mutually beneficial cooperation and common development Of you
Certified product
Customer Photos FAQ 1. Why should you choose from us?  Professionalism. We are a professional manufacturer in Slitting & Cut to Length (CTL) line machine for more than 20 years. We can provide cost-effective & high quality slitting and cut to length machines.         So far we have exported to more than 80 countries, including Argentina, Bangladesh, Belarus, Bolivia, Brazil, Chile, Egypt, Indonesia, Iran, India, Malaysia, Pakistan, Philippines, South African, Turkey, Russian, UAE, Saudi Arabia, Vietnam, etc. Our dedicated sales &technology &service team of specialists is always customer-oriented. 2. How about the safety ?   We exclusively collaborate with specialists in cargo safety and our suppliers are chosen for their promptness and high standards. We have our own professional staff to tied the machines firmly to the inside of container by steel rebar. We always deliver the machines on time and keep the customer well informed about the shipping information and drawing.
 3. What is the quality of your machine?  The first class Quality. We manage to offer our partners the best customer care, products and services by using the latest technologies in the branch. The components we provide are of best quality, to make sure our machines can be running very well for decades.
4. What service we can get from your company?  -VIP Service. Due to our standards, we manage to build long-lasting relationships with all our customers.  We are 24/7 online available for you to answer your questions and solve your problems.    5. Quality Inspection  The machines of our company have many certificates like ISO 9001, CE, SGS, etc. Before the shipping, we have a series of quality check system, includes 3 times of inspection for every production procedure. First inspection needs the workers to check and sign on the test report. Second inspection involves department leaders to check and sign on the test report. The Third inspection needs professional inspector to check and ensure the machines are qualified. We also give 18 month warranty time to the  customer Related Products
