Product Details High Speed Uncoiling-Leveling-Cut to Length -Stacking Line

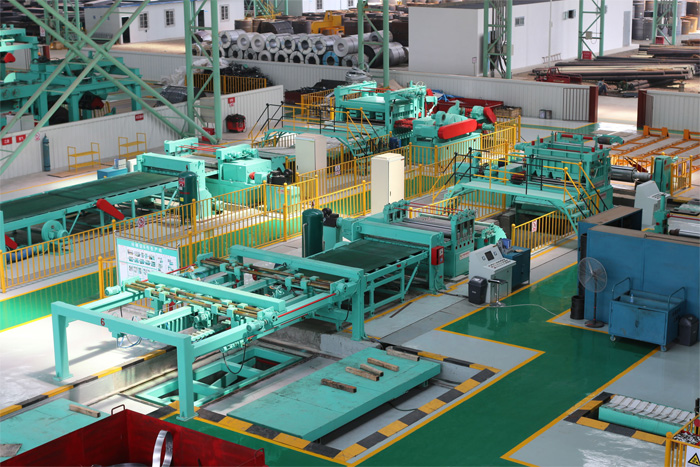

This production line is used for coil with different specifications, through uncoiling, leveling and cutting to length to flattened plate as needed length and width.
Composed of coil car, double support un-coiler, pre-leveler, finish-leveler, length gauge, cut to length machine, stacker,
servo driven system, etc. as well as pendulum middle bridge, pressing and guiding device and steering device.

Technical Parameter

可加工板厚 (mm)
Thickness Range
0.11-1.2 0.2-2.0 0.3-3.0 0.5-4.0
Width Range
         Linear Speed
Cutting length Range
300-4000 300-4000 300-4000 300-6000
Stacking Range
300-4000 300-4000 300-6000 300-6000
Cutting length Precision
±0.3 ±0.3 ±0.5 ±0.5
Coil Weight
10&15T        15&20T 20&25T 20&25
Leveling Diameter
65(50) 65(50) 85(65) 100(80)

Other Products

Product Advantage
1.Technological process of the production line is concise, compact layout, advanced technology, put an end to produce defects, comprehensive energy consumption is low, simple operation and maintenance, low operating cost.
2.Production line adopts the standard electrical, instrumentation components and equipment components meet the needs of the buyers,Control system has the maintainability and expansibility; And ensure the advanced technology, reliable control, during normal operation can automatic complete all real-time detection and adjusting function, have interlocking function to prevent wrong operation, Do all the operation, monitoring on main operating platform .Display and handle the alarm.
