Product Details Description &Function
1、What is Cut To Length Machine The Cut To Length Machine also called cut to length line which are used for uncoiling,leveling and cutting the metal coil into the required length of flat sheet material and stacking.It suitable for processing cold rolled and hot rolled steel, coil,galvanized steel coil,silicon steel coil, stainless steel coil,aluminum coils etc into different width according to the user’s production demands and cut as well
 2、Function This equipment through the procedure of uncoiling, leveling, precision gauge cutting, processing the strip steel coil into required steel pate. It mainly composed of uncoiler, pincher and leveler, gauge, cutting machine , stacker, etc, with assists of feeder, side guiding device, transition, and conveyor, etc. 3、Category According to the metal materials there are stainless steel cut to length machine,silicone steel cut to length machine,cold or hot rolled plate cut to length machine and so on. According to its electronic control mode there are pneumatic cut to length line,NC cut to length line and etc..

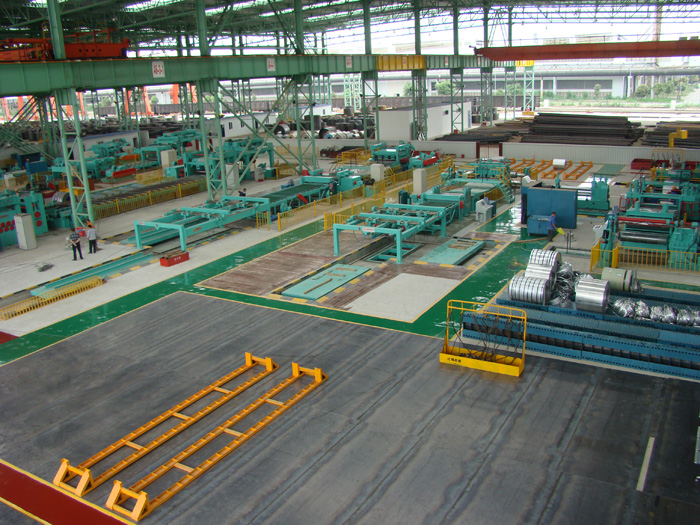

The whole lineflowchart
Coil loading car----Decoiler----coil head press, guide and shovel equipment----Double pinch rollers---Centre aligner----high-precision levelers( 23 rolls)---encoder ----hydraulic tracking cutting machine--pinch rolls for sheets dropping-- plates-delivering roll table----plates sending out device----plates supporting table---plates piling up device--manual packing




Machine parameters
►Material of steel coils: cold rolled steel.hot tolled steel hard G550Mpa
►Thickness of coils: 6-20mm
►Coil width: 800-2000mm
►Outer diameter of coils: Φ2100mm
►Inner diameter of coils: Φ508、Φ610、Φ760。
►Coil weight: 30T (max)
►Cutting Length: 2000mm—12000mm


Product Advantage
1.Technological process of the production line is concise, compact layout, advanced technology, put an end to produce defects, comprehensive energy consumption is low, simple operation and maintenance, low operating cost.
2.2.Production line adopts the standard electrical, instrumentation components and equipment components meet the needs of the buyers,Control system has the maintainability and expansibility; And ensure the advanced technology, reliable control, during normal operation can automatic complete all real-time detection and adjusting function, have interlocking function to prevent wrong operation, Do all the operation, monitoring on main operating platform .Display and handle the alarm.
